Orient the Juicing Bowl
Face the bowl forward. The pulp outlet is on the left and the juice outlet is on the right.
MODEL INSTRUCTIONS
Smart Touch Cold Press Juicer
Assembly, disassembly, and ingredient-loading guidance for your TUUMIIST Smart Touch model.
BEFORE YOU BEGIN
Know Your Juicer
The main components shown in the product guide are the hopper with lid and handle, auger, strainer, juicing bowl, and Smart Touch base.
Turn off and unplug the juicer before assembly, disassembly, or cleaning.

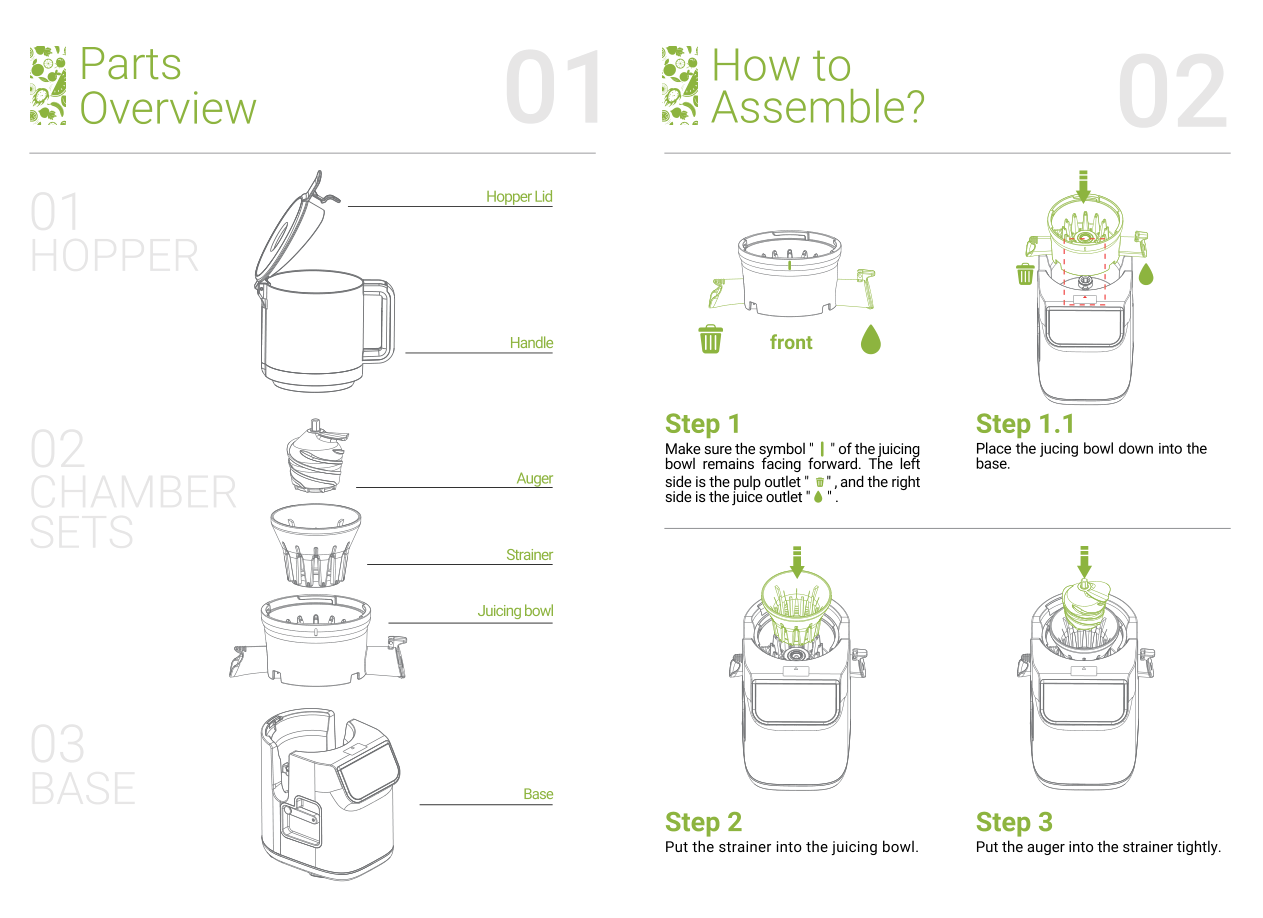

PARTS & ASSEMBLY
Parts Overview and First Assembly Steps
Face the juicing bowl forward with the pulp outlet on the left and juice outlet on the right. Seat the bowl on the base, place the strainer inside, and press the auger firmly into the strainer.
ASSEMBLY
Assemble the Smart Touch Juicer
Follow the alignment marks shown in the original product guide.
Seat the Bowl
Place the juicing bowl down into the base.
Install Strainer and Auger
Put the strainer into the bowl, then press the auger tightly into the strainer.

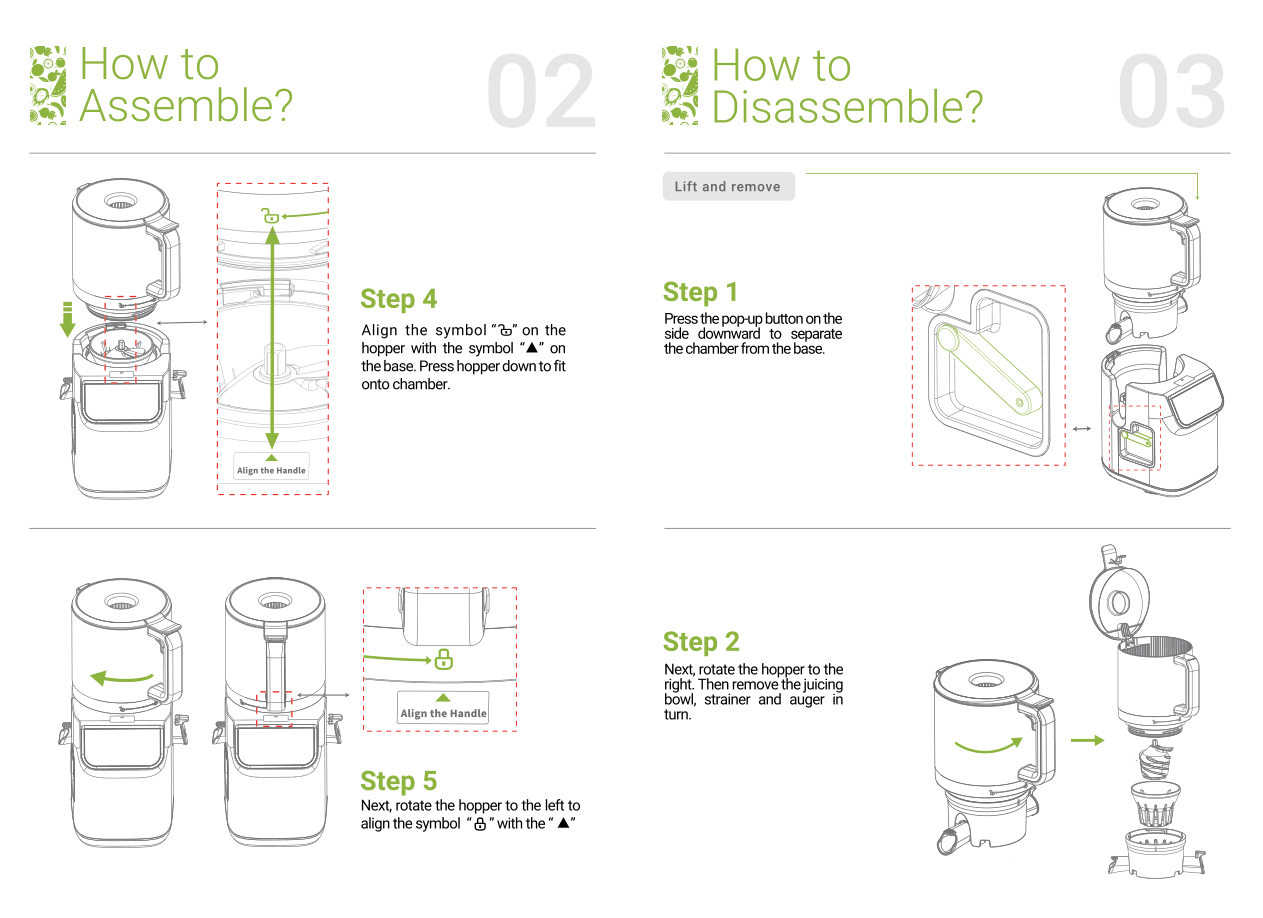

Fit the Hopper
Align the hopper unlock symbol with the triangle on the base and press down to fit it onto the chamber.
Lock the Hopper
Rotate the hopper to the left until the lock symbol aligns with the triangle.
DISASSEMBLY
Remove the Chamber Set Safely
Press the pop-up button downward to separate the chamber from the base. Rotate the hopper to the right, then remove the juicing bowl, strainer, and auger in turn.

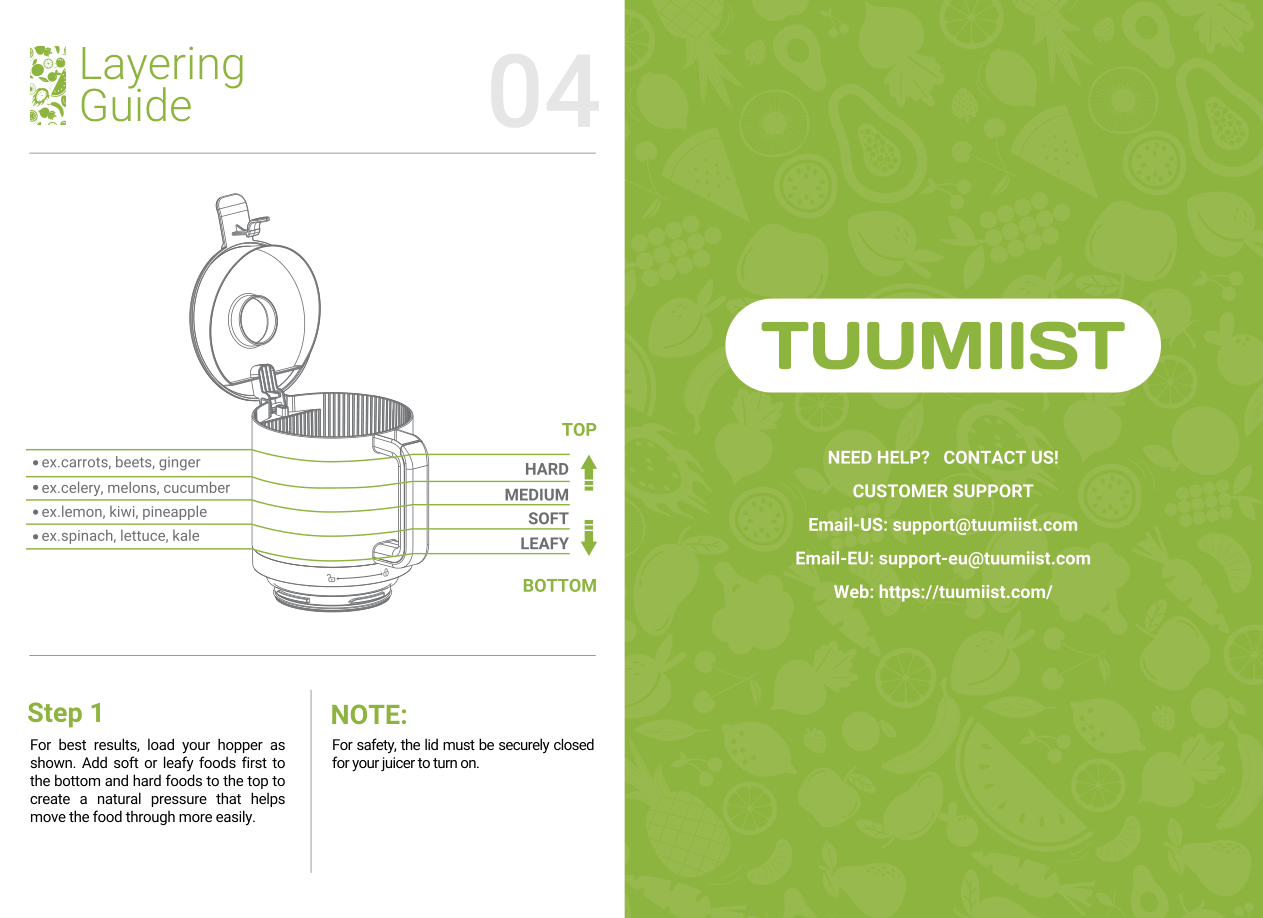

INGREDIENT LOADING
Layer Ingredients for Best Results
Load soft or leafy foods first at the bottom and hard foods at the top. The guide examples place leafy greens at the bottom, followed by soft fruit, medium produce, and hard ingredients such as carrots, beets, or ginger at the top.
SAFETY NOTE
Close the Lid Before Starting
For safety, the lid must be securely closed for the juicer to turn on. Do not force parts into position. If the hopper does not lock, recheck that the strainer and auger are seated correctly.
